No Slide in the Sliding Door



Our Bathroom has a sliding door that had become stuck in the open position.  After a good deal of fooling around, Mary and I were able to get it to slide partway closed.  We found that the door was attached to two trolleys in the top track.  The door can be released from the trolleys by opening a clip.  The door can then be removed and set aside.

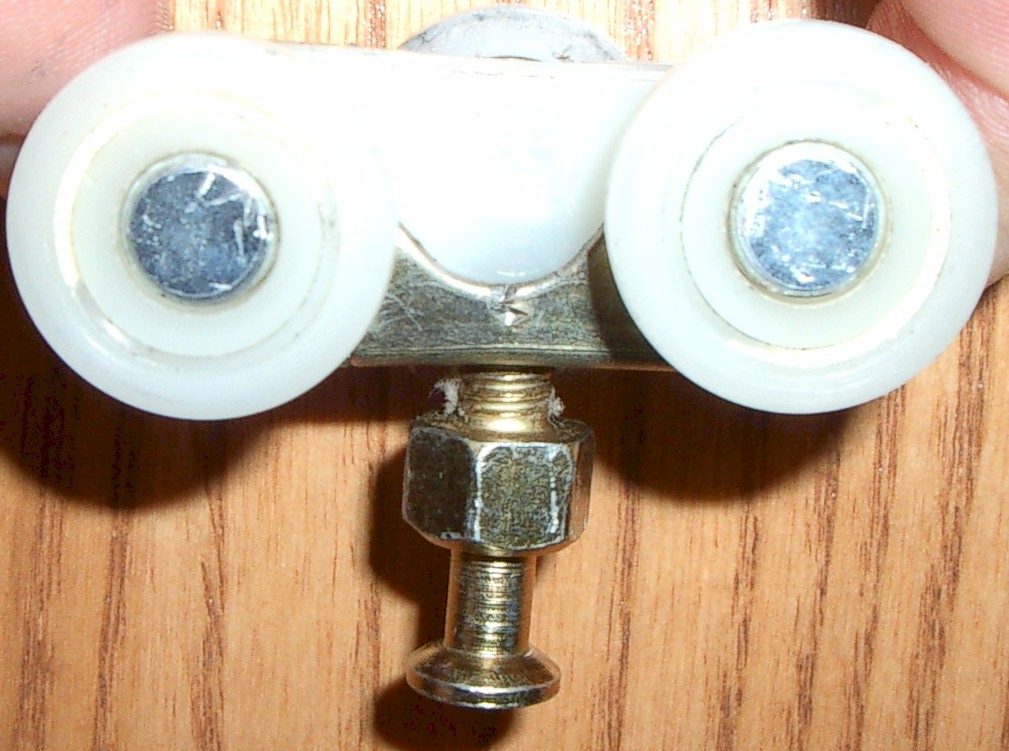

We removed as many screws from the top track as we could.  This let us push the track away and release the trolleys.  One of the two trolleys had a wheel bent.  It was not bent badly but enough to hang up on the track mounting screws.  Once it was realigned the door worked as new.  We did have to adjust the angle of the door by adjusting the trolley bolt.Click for a larger image

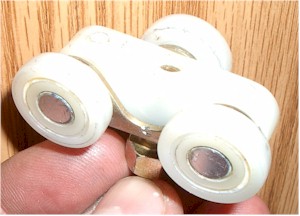

Click for a larger image

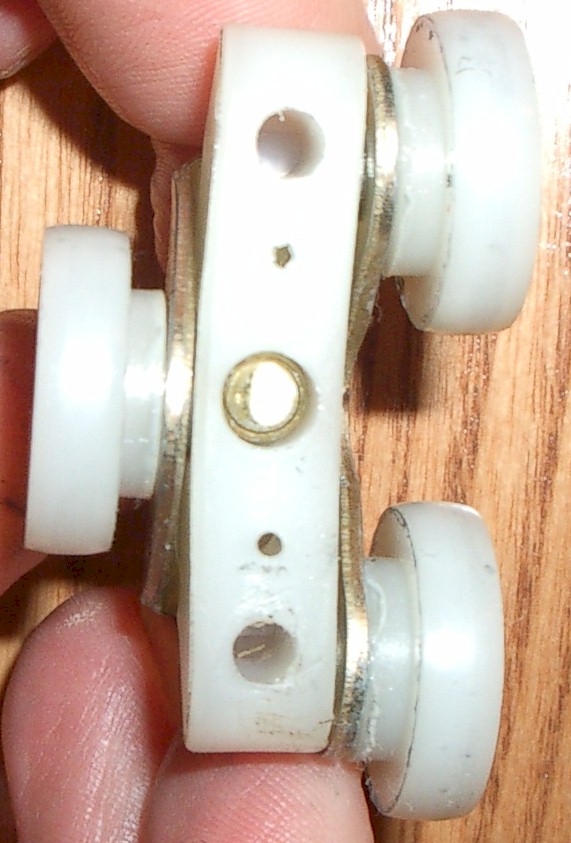

Click for a larger image

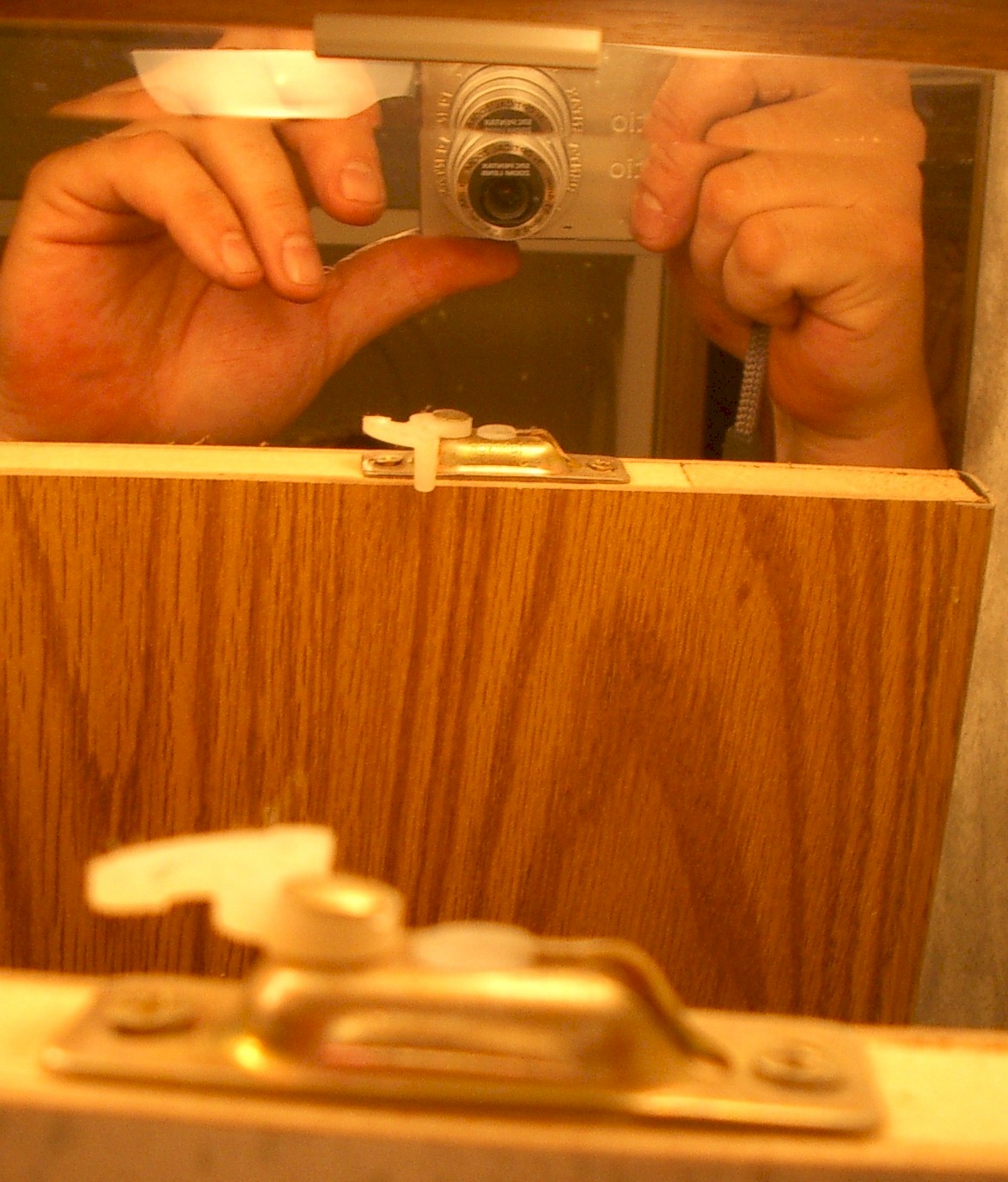

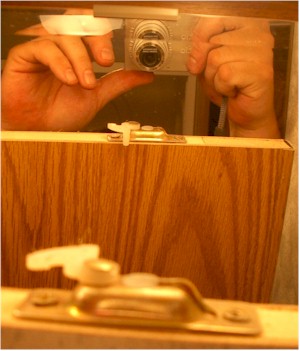

Click for a larger image (note:  shown in mirror, you have both sides represented)
